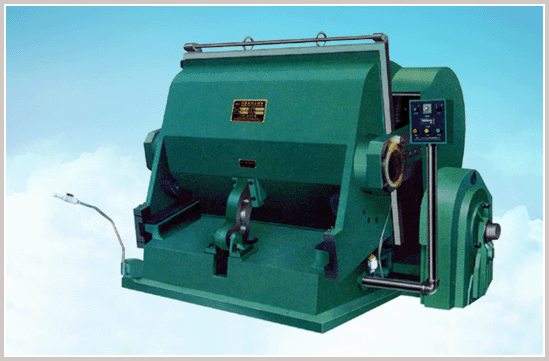

CODCD-5 Series Die-cutting
and Creasing Machine 1600-1800


Introduction:
   CODCD-5 Series Die-Cutting and Creasing Machine is the special equipment for die cutting and creasing many different kind sheet shape materials. Such as hard paperboard, corrugated paperboard, plastic, leather and so on. It is widely used in printing, packing and decorating industry. Our companie's product with its high-quality and competitive price are popular by our customers all over the world.

Characteristics:
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
5.Have functions of single cutting and creasing, continuous cutting and creasing and time-lapse opening, time-lapse range is adjustable.
6.Operation height is reasonable designed, the opening corner of the moving-bed is big.
7.Focus lubrication system makes the machine can lubricate very well, and reduce the abrasion.
8.Safety system is reliable.


Technological Parameters:
Model
CODCD-5-1600
CODCD-5-1800
Max. die-cutting
and creasing area
1600×1250mm
1800×1400mm
Working speed
16±2 strokes/min
16±2 strokes/min
Max. Rule length
<50m
<62m
Power
11kw
11kw
Weight
11500kg
13500kg
Machine Size(L×W×H)
2170×2560×2230mm
2240×2800×2130mm
