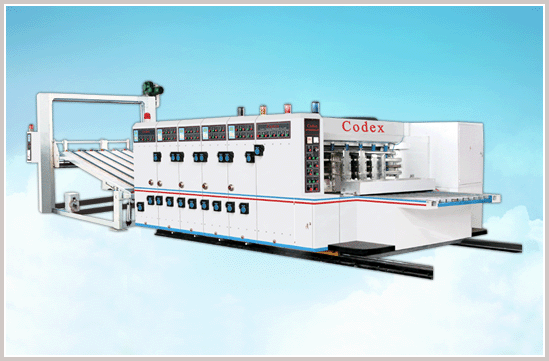

COD 4210 multi-color
printing & slotting machine

◆ As per the high requirement, dependability and safety, the whole set of machine is designed and manufactured. You can exchange the order forms quickly and operate conveniently.
◆ Choose the good quality materials and fittings.
◆ Add the hardness to the drive gear and grind it. The Rockwell hardness must be more than 60°.
◆ Automatic returning.
◆ All the spaces can be hand or electrically adjusted.
◆ Chromium plating to all the rolling bearings to increase the hardness.
◆ Digital inputting electric phase adjustment, 360ocould be adjusted while the machine running or stop.

Technical parameters:
Parameter
Unit
Model
1300×2000
1300×2200
1300×2400
Max. machinery speed
pcs/min
100
100
100
Economic printing speed
pcs/min
80
80
80
Max. size of paperboard
mm
1300×2200
1300×2400
1300×2600
Min. size of paperboard
mm
350×650
350×650
350×650
Min. space of slotting
Obverse knife
mm
160×160×160×160
Min. space of slotting
Reverse knife
mm
260×80×260×80
Max. depth of slot
mm
320
320
320
Max. thickness of paperboard
mm
12
12
12
Max. printing area
mm2
1300×2000
1300×2200
1300×2400
Thickness of
standard printing plate
mm
6
6
6
