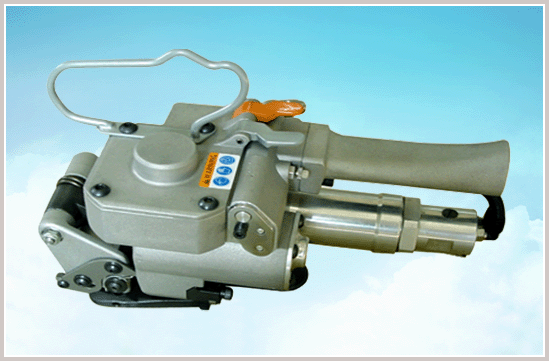

strapping machine

Model: COD-19-III
Strapping strength (when gas pressure is -0.63Mpa): 3500N.
Max. Working gas pressure: 0.8Mpa
Working gas pressure: 0.5~0.7Mpa(72~100psi)
Best working gas pressure: 0.63Mpa
Strapping machine weight: 3.8kg
Total Length: 278.5mm (basement length 70mm)
Width: 149.5mm
Height: 173.0mm
Strapping belt material: PET
Strapping belt width: 13mm ~ 19mm
Strapping belt thickness: 0.5 ~ 1.5mm
Lubrication oil: 51#
Vibration: Meet the requirement of ISO5349.
Consumption of compressed gas: 0.3L/min
Welding time adjust scope: 2 ~ 5s
