Core machine

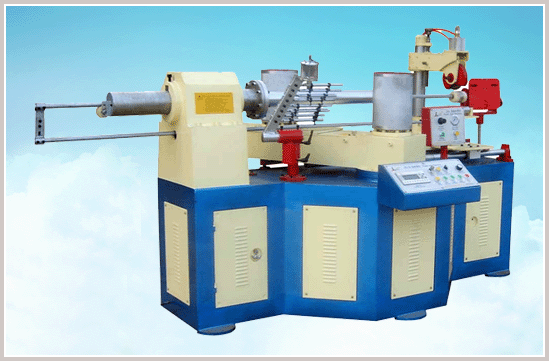

Model: COD-3250 paper tube machine Machine Details:
Model
COD-3250( 50A )
Technical parameter
cutting motor
K micro motor
Number of roll paper
3-8layer
Bear
Wanxiang product
Max-diameter
120mm
Control system
Min-diameter
15mm
PLC controller
Taida DVP
Max-thickness
6mm
Man-machine interface
E-view304 disply
Min-thickness
0.6mm
Program edition
JS-A2.8V
Coiling core matrix fixed way
Fixation
Transducer
ZIRI4KW
Rewinding noses
Two noses single belt
Executive equipment
Zhengtai
Cutting way
Single round knife cutting
Signal component
Lugong
Gluing way
Gluing double side
Pneumatic component
Ya dei ke
Fixing length way
infrared
Adjusting angle motor
No
Opertor
1
Sychronized control
Productive speed
3 -20m
Speed of adjust control
Syschronized follow system
Power input
380v (3phase, 4lines)
Outfit assemble
Size(mm)
Remote control
Have
Mainfram:L*W*H
2600*1600*1500
Auto falling tube-shelf
Can choose
Area space:L*W
12000*4000
Belt angle
Manual adjust
Wheel hub diameter
215mm
Belt adjust
Wheel hub width
300mm
Mainframe swing angle
Min-tread
750mm
Stop when paper eithout
Max-tread
900mm
Auto giving glue
Gear pump 1.5KW
Total weight
1000kg
Auto lubricating oil
Convey system
Paper–shelf type
Cruciform fission paper-shelf
Mainfram power
4kw wannan
Tension control
Mainframe wheeling speed
1400r/min
Belt
One piece
Hub max wheeling speed
80r/min
Enclosed component
Wheel hub output tread
3000n.m
Winding core rod
Reductor type
WPOD Hangzhou Jiacheng
Aircompressor
Greabox type
120
Sueful tool
have
Wheel hub driving
2wheel driving
-
